A set screw is a type of screw generally used to secure an object within or against another object. The most common examples are securing a pulley or gear to a shaft. Set screws are usually headless (also called blind), meaning that the screw is fully threaded and has no head projecting past the major diameter of the screw thread. A blind set screw (known in the UK as a grub screw, quite possibly from its figurative resemblance to a soil-dwelling grub) is almost always driven with an internal-wrenching drive, such as a hex socket (Allen), star (Torx), square socket (Robertson), or slot. The set screw passes through a threaded hole in the outer object and is tightened against the inner object to prevent it from moving relative to the outer object. It exerts compressional or clamping force through the bottom tip that projects through the hole.
An example application is when a set screw is screwed into a pulley hub so that its end-point bears firmly against the shaft. The fastening action is by friction between the screw and the shaft, often (but not always) with some amount of elastic or plastic deformation of one or both.

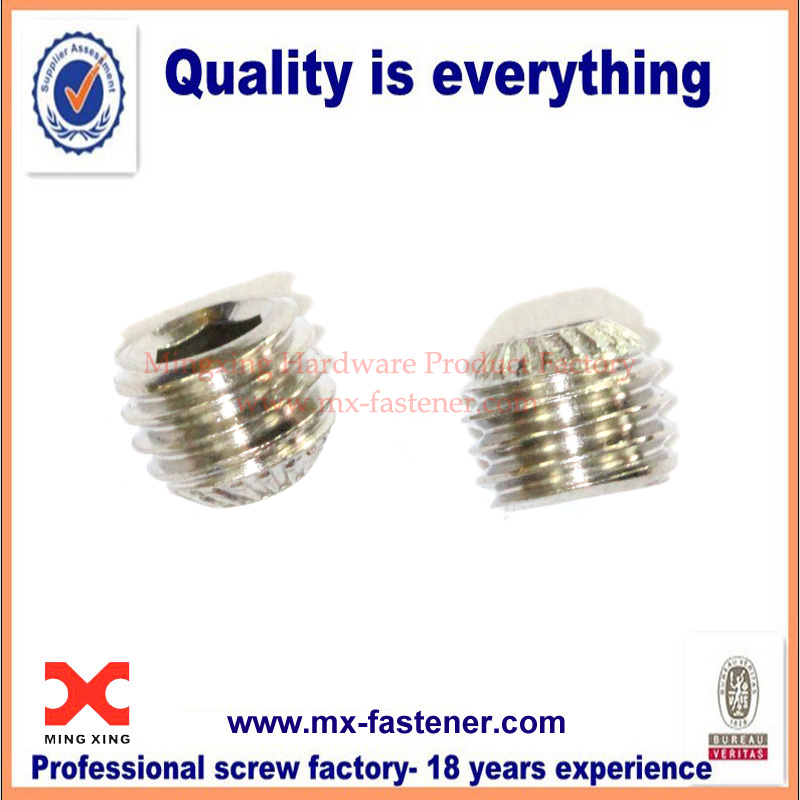

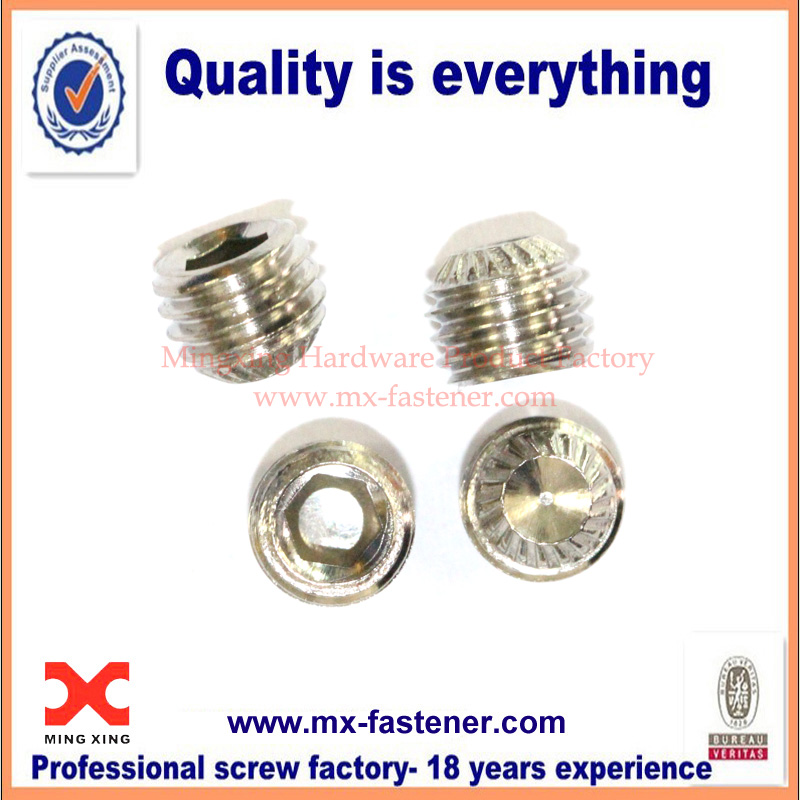

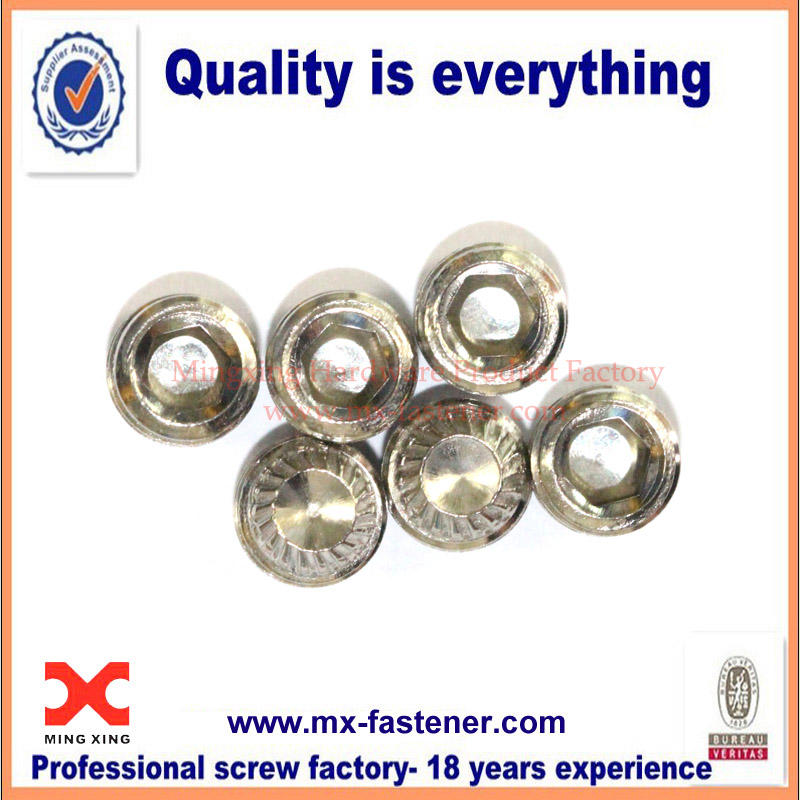

Socket alien head metric set screws
Details
Various kinds of fasteners for you reference
1 :We can provide samples in 7 days
2 :Provide custom made service
3 :We can help you develop new product
4 :Quality assurance
5 :Factory price
M-sing Screw Factory with a mature production technology and sophisticated processing techniques, improved detection methods, with the development of strong design capabilities, product quality, the introduction of domestic and international high-precision molds and high-quality raw materials. The main production line with GB, Japan’s JIS, the United States ANSI, the German DIN, BS British standards of bolts, and customers can request all kinds of difficult design and production of standard parts. And through third-party authoritative testing agencies product testing, qualified in the relevant report. Re-header equipment, Roll Machine, tail-cutting, stamping machines, slot milling machines, line cutting, automatic lathes, and other production equipment, some of which more machinery assembling a computer-controlled, automatic detection display, can provide the steady and rapid Zero tolerance of the product, the monthly production capacity of several 10 million.
